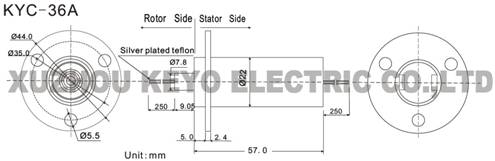

KYC36 Series Slip Ring
Description:
This units can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.It's also called a rotary electrical interface,commutator,collector,swivel or an electrical rotary joint.It can improve electromechanical capability,simplify system design,eliminate possible damage while rotation.It¡¯s the key apparatus of various precision rotary worktable, electric test instrument,manufacture and process control instrument.
Features:
¡ö 2 amps ,240 VDC / 240 VAC per circuit
¡ö Precision ball bearings meet or exceed life requirements for most commercial application
¡ö 36 circuits models
¡ö Gold-on-gold contacts
¡ö 200mm standard lead lengths
¡ö Compatible with data bus protocols
¡ö Speeds up to 300 rpm continuous
¡ö Sealed units are also available
¡ö Flexible, color-coded, silver-plated, Teflon? insulated lead wires
¡ö Transfers analog and digital signals
¡ö Also available with 5 and 10 amps power rings combined with 2 amps rings.
Specifications:
Operating Speed 0-300 rpm
Number of Circuits 36
Voltage 240 V AC/DC
Current Rating 2 amps /per circuit
Temperature Range -20¡æ to +80¡æ
Contact Material Gold to Gold
Lead Size AWG28 silver plated copper? UL Teflon
Lead Lengths 250 mm minimum
Dielectric Strength 500 VAC @50Hz, between each ircuit and all other circuits
Insulation Resistance 1000 megohms @ 500 VDC
Electric Noise ¡Ü10m¦¸
¡ö  The operating life of the unit depends upon temperature, rotation speed and environment.
¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡ ¡¡
